Talstöð Yaesu FT-790R
1978
In preservation at
Skógar museum

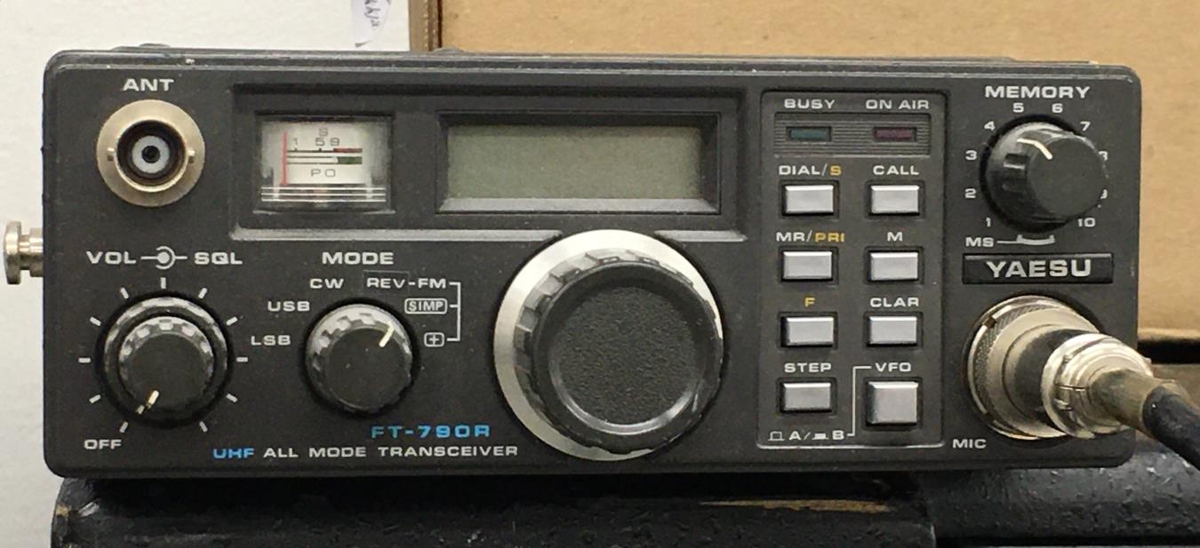

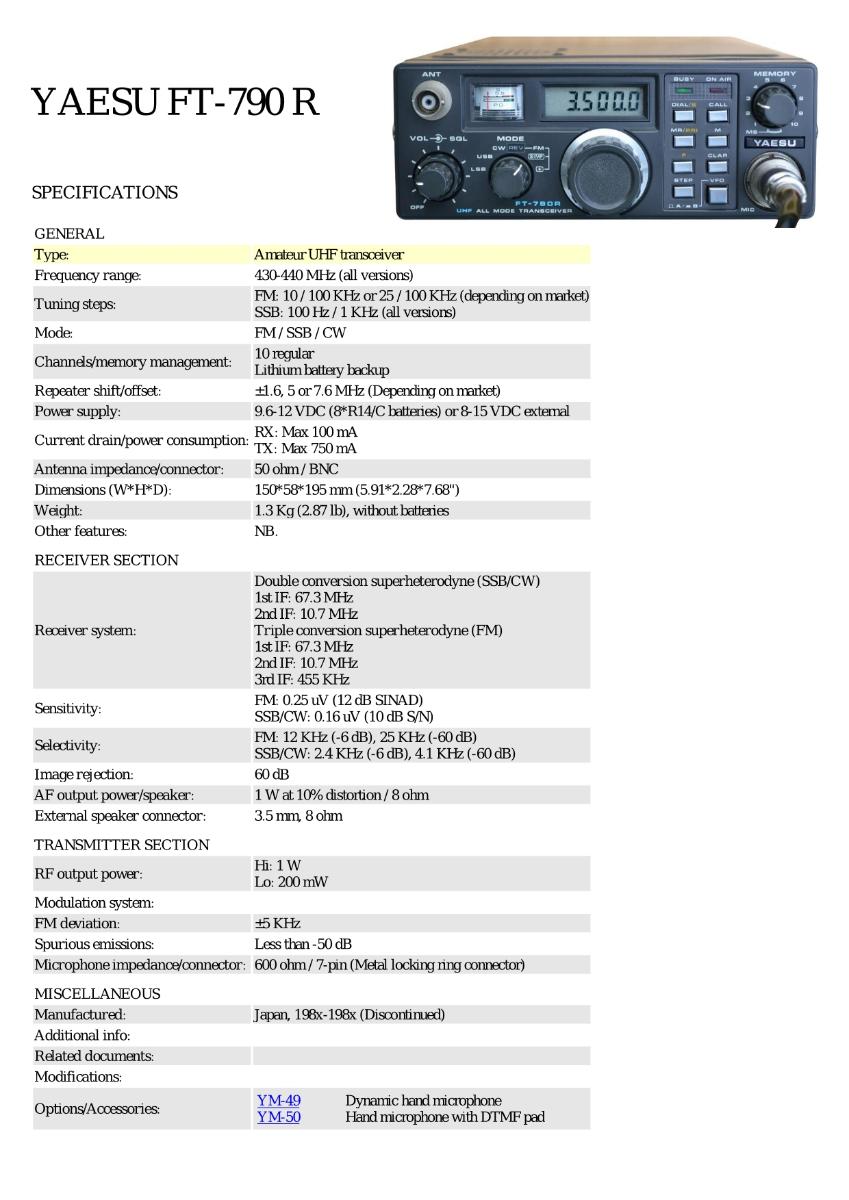

Yaesu FT-790R talstöð. Type: Amateur UHF transceiver
Frequency range: 430-440 MHz (all versions)
Tuning steps: FM: 10 / 100 KHz or 25 / 100 KHz (depending on market)
SSB: 100 Hz / 1 KHz (all versions)
Mode: FM / SSB / CW
Channels/memory management: 10 regular
Lithium battery backup
Repeater shift/offset: ±1.6, 5 or 7.6 MHz (Depending on market)
Power supply: 9.6-12 VDC (8*R14/C batteries) or 8-15 VDC external
Current drain/power consumption: RX: Max 100 mA
TX: Max 750 mA
Antenna impedance/connector: 50 ohm / BNC
Main information
Title
Proper noun: Talstöð Yaesu FT-790R
Dating
1978
Material
Object-related numbers
Museumnumber a: SHR-214
Dimensions
15 x 58 x 19.5 cm
1.3 kg
Lengd: 15 Breidd: 58 Hæð: 19.5 cm
Record type
Collection
Undirskrá: Samgöngusafnið
Undirskrá: Fjarskiptasafn Sigurðar Harðarsonar
Keywords
Keyword: Talstöð
